7 Washer Shift Actuator Problems: Symptoms, Diagnosis & Repair Guide

A washing machine that hums along but refuses to spin, agitates but never moves on to the next stage, or makes a strange clicking sound underneath the tub is usually pointing to one specific part: the shift actuator. Washer shift actuator problems are one of the most misunderstood washing machine faults because the symptoms often overlap with motor issues, belt failures, or drainage faults. Once you understand what this part actually does, though, diagnosing it becomes a lot more straightforward

What Is a Shift Actuator and Why It Matters

The shift actuator is a small electric component mounted on or near the transmission of most top-load washing machines. Think of it as a mechanical traffic controller. Its entire job is to physically shift the transmission between two modes: agitation, so the agitator or wash plate can move clothes through the water, and spin, so the basket can rotate at high speed and extract water.

Because this one part controls the switch between two very different mechanical functions, washer shift actuator problems tend to produce a very specific pattern. The washer usually doesn’t stop working entirely .it just gets stuck doing one function and can’t transition to the next. That’s the easiest way to tell an actuator issue apart from a dead motor, which typically prevents the machine from doing anything at all.

This part shows up most often in direct-drive top loaders from Whirlpool, Maytag, Kenmore, and Amana, where a splutch or similar toothed clutch mechanism works alongside the actuator to complete the shift

Common Symptoms of Washer Shift Actuator Problems

Recognizing the signs early can turn a $30–$90 part replacement into a quick fix, rather than letting it snowball into transmission damage. Here’s what to watch for:

• Washer agitates but never spins. clothes come out soaking wet because the tub never transitions into spin mode.
• Washer spins but won’t agitate. less common, but it still points to the actuator being stuck in the wrong position.
• Clicking or grinding noise from underneath the tub, usually right as the cycle tries to switch modes.
• Washer stops mid-cycle. many control boards monitor actuator position and will pause the cycle if it can’t confirm the shift completed.
• An error code referencing the motor or drive system (codes vary by brand and model year, so it’s worth checking your specific service manual).

If you’re noticing more than one of these at once, there’s a good chance the actuator. not the motor or the belt. is the actual problem.

Why Shift Actuators Fail

Like any part with moving components, actuators wear down over time. A few things tend to speed that process up.

Overloading the washer puts extra strain on the transmission and actuator with every single cycle, since the actuator has to work harder to force the shift under a heavier load. Age and cycle count matter too .a washer running daily in a busy household will wear through an actuator faster than one used a few times a week.

Moisture damage is another frequent cause of washer shift actuator problems. A leaking tub seal or failing water inlet valve can let water seep down into the transmission area, corroding the actuator’s wiring or internal motor windings. And loose or damaged wiring can interrupt the signal between the actuator and the control board, producing symptoms that look identical to actuator failure even when the part itself is still fine. Finally, a worn drive belt or failing motor coupling can put irregular stress on the actuator, wearing it out prematurely even if it started off in good shape.

How to Diagnose a Shift Actuator Problem

Before you order a replacement part, it’s worth running through a few checks, since several other components can mimic the same symptoms.

1. Unplug the washer first. always disconnect power before inspecting internal components.
2. Listen during a cycle change. Run a wash cycle and pay attention as it moves from agitation to spin. A healthy actuator usually makes a brief clicking sound; continuous clicking with no movement typically means the gears are stripped or the motor has failed.
3. Inspect the wiring harness. Look for loose connectors, corrosion, or burn marks, and reconnect anything that’s come loose. a loose connection is one of the most common reasons a “new part still doesn’t work.”
4. Examine the actuator housing for cracks, melted plastic, rust, or water damage. Physical damage like this almost always means replacement is the right call.
5. Test resistance with a multimeter. Unplug the actuator and check resistance across its terminals. On many Whirlpool-style shift motors, a healthy reading falls somewhere between 200 and 3,500 ohms (check your service manual for the exact range for your model). A reading of zero or infinite resistance confirms the actuator has failed internally.
6. Check the actuator arm and linkage. Sometimes the actuator itself tests fine, but the plastic arm has cracked or slipped off the splutch operating lever or gearcase cam. a much cheaper fix than a full replacement.

It’s also worth ruling out the drive belt and motor coupling while you’re in there, since both sit close to the actuator and can produce nearly identical no-spin symptoms when they wear out.

Replacing a Washer Shift Actuator

Once testing confirms the actuator is the problem, replacement is a manageable job for anyone comfortable with basic hand tools.

Start by disconnecting the power and water supply lines, then tilt the washer back or remove the cabinet panel, depending on your model. Many direct-drive machines let you access the actuator from underneath without full disassembly, while others need the tub tilted back for a clearer view of the gearcase.

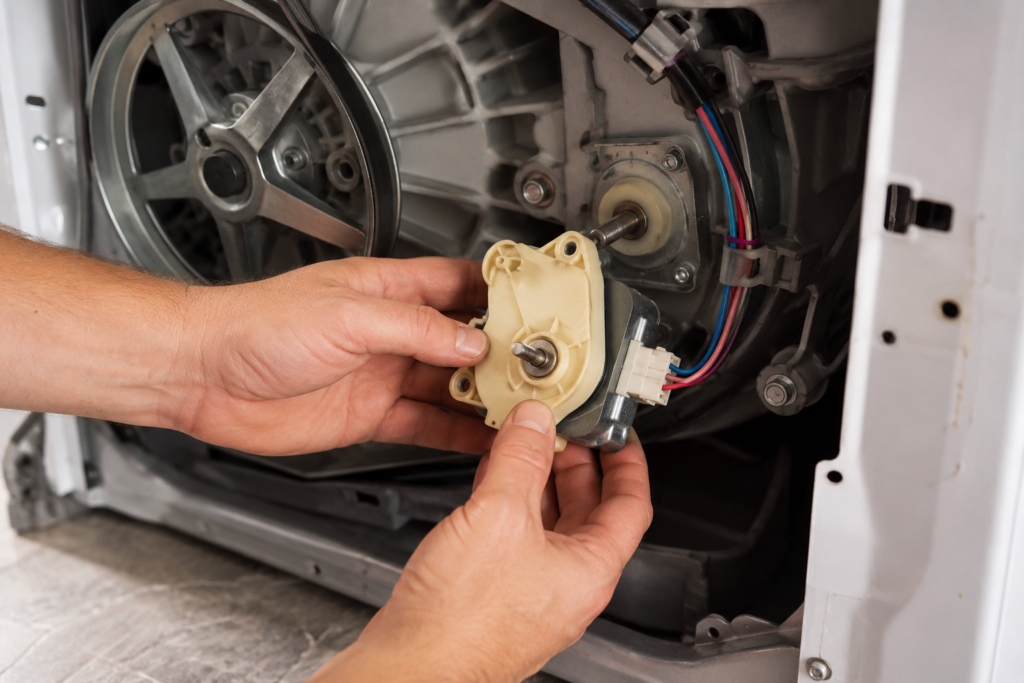

Locate the wiring harness connector, press the locking tab, and disconnect it. Remove the mounting screws. usually two or three. holding the actuator to the gearcase, and take note of how the actuator arm is positioned before pulling the old part out. The new actuator needs to engage the splutch operating lever or gearcase cam in that same orientation.

To install the replacement, align the arm correctly, secure the mounting screws until snug, and reconnect the wire harness until it clicks fully into place. That click matters. a loose harness connection is one of the most common reasons a freshly installed actuator still doesn’t seem to fix washer shift actuator problems.

Once everything’s reassembled, restore power and water and run a full test cycle. Watch closely as the washer moves from agitation into spin. On most models, the control board recalibrates actuator position automatically during this first cycle. If you see errors, unplug the washer for about ten minutes to reset the control board, then try again.

Replacement actuators typically run $25 to $90 depending on brand and model, and the job itself usually takes 20 to 60 minutes. If a new actuator doesn’t restore movement, or you’re seeing multiple error codes at once, that usually points to a transmission or control board issue. a job better suited to a qualified technician

Preventing Future Actuator Failures

A few simple habits go a long way toward avoiding repeat washer shift actuator problems down the line:

• Avoid overloading the drum, even when you’re in a hurry. load capacities are based on what the transmission and actuator can safely handle over thousands of cycles.
• Keep the machine level to reduce unnecessary vibration and strain on the linkage.
• Address water leaks right away rather than letting them linger near the transmission housing.
• Check the wiring harness periodically for looseness or corrosion during routine maintenance.
• Clean underneath the washer occasionally to keep lint and debris away from the gearcase.

Paying attention to unusual noises during the agitate-to-spin transition is probably the single most valuable habit here. Catching a struggling actuator early. while it’s still clicking rather than completely dead. gives you the chance to replace it before it causes secondary damage to the transmission or splutch mechanism

Final Thoughts

Washer shift actuator problems are frustrating in the moment, but they’re also some of the most diagnosable washing machine faults once you know what you’re looking at. A washer that agitates but won’t spin, combined with clicking or grinding near the transmission, is a strong sign that this small but essential part needs attention. With a multimeter, a bit of patience during disassembly, and the correct replacement part for your model, most homeowners can confirm the diagnosis and complete the repair themselves. avoiding a costly service call for what is, in the end, an affordable and fairly straightforward fix.
