8 Washing Machine Control Board Problems: Symptoms, Causes, Diagnosis & Fixes

If your washing machine has stopped responding, started behaving erratically, or is throwing up error codes that will not clear, the control board may be the source of the problem. Understanding washing machine control board problems .what causes them, how to recognize them, and what to do about them. can save you time, money, and unnecessary frustration. This guide covers everything you need to know about control board failures in washing machines, from early warning signs to practical repair decisions. Understanding washing machine control board problems early can help prevent unnecessary repairs and reduce troubleshooting time.

What Does the Control Board Actually Do?

The control board. also referred to as the PCB (printed circuit board), main board, or electronic control board. is the central processing unit of your washing machine. Every action the machine performs is directed by this component.

When you select a wash cycle and press start, the control board receives that input and begins coordinating the entire sequence. It signals the inlet valve to fill water to the correct level, regulates the water temperature, controls motor speed during agitation and spin, monitors sensors throughout the cycle, and triggers the drain pump at the right moment. It also manages safety checks, such as confirming the door is locked before spinning begins.

Because the control board connects to virtually every other system in the machine, a failure in this one component can disrupt multiple functions simultaneously .which is exactly what makes washing machine control board problems so difficult to diagnose at first glance

Symptoms of a Failing Control Board

Control board problems rarely announce themselves clearly. The symptoms tend to be inconsistent at first, which is why many homeowners assume there are multiple unrelated faults before the real cause is identified. Many washing machine control board problems begin with random errors, cycle interruptions, or unresponsive controls.

The Machine Will Not Power On or Start

A washing machine that is completely unresponsive. no lights, no display, no reaction when pressing start .is one of the clearest signs of a control board failure. Before drawing that conclusion, confirm that the power outlet is working and no circuit breakers have tripped. If the power supply is confirmed functional and the machine still does not respond, the board is a primary suspect.

Cycles Stop Unexpectedly Mid-Wash

If the machine begins a cycle but halts partway through. leaving laundry sitting in water or the drum frozen during spin. the control board may be losing the ability to send sequential commands to other components. This is particularly common when the board has suffered moisture damage or when solder connections have deteriorated with age. Occasional stops can progress to complete failure over time.

Error Codes That Keep Returning

Modern washing machines display error codes to flag specific problems. While many error codes point to sensors, pumps, or valves, codes that persist after you have addressed the obvious causes, or codes that appear randomly without explanation, often trace back to the control board. A failing board can misread sensor data and generate false alerts repeatedly.

Buttons Are Unresponsive or Trigger the Wrong Function

When the board can no longer correctly process user input, you may find that pressing a button produces no response, or that selecting one cycle causes a different one to run. This type of user interface failure is a strong indicator of communication breakdown between the control panel and the board itself.

Water Fills or Drains at the Wrong Time

The control board directs when inlet valves open and when the drain pump activates. A malfunctioning board may cause the machine to overfill, not fill at all, or fail to drain at the end of a cycle. even when the valves and pump are in good working order. If you have ruled out blockages and component faults, the board’s timing logic deserves closer inspection.

Burning Smell or Visible Burn Marks

A burning odour during operation, or visible scorched areas on the control board when you open the panel, indicates that components on the board have overheated or experienced a short circuit. This level of damage requires immediate attention. Continuing to use the machine in this condition is not safe.

Multiple Systems Failing at the Same Time

One of the most telling signs of a control board problem is when several unrelated functions fail together in the same cycle. The drum stops spinning, water does not drain, and the display shows errors. all at once. Because the control board governs all of these systems, a single board failure can produce exactly this pattern. If multiple functions are failing simultaneously, the board should be among the first components investigated

What Causes Washing Machine Control Board Problems in Washers?

Understanding the root causes helps you both diagnose the current issue and prevent future failures. Power surges remain one of the leading causes of washing machine control board problems.

Power surges and voltage spikes are among the most common causes of control board damage. A surge from a lightning strike, a power outage followed by restoration, or an unstable outlet can push excessive voltage through the board’s delicate circuits in an instant.

Moisture and water exposure are a serious threat to any electronic component. Internal leaks, condensation from temperature changes in the laundry area, or a slow seal failure can allow water to reach the board over time. Once moisture contacts the board, corrosion begins and solder connections start to fail. often weeks or months before visible symptoms appear.

Overheating occurs when the machine runs in a poorly ventilated space or when heat from nearby components builds up around the board. Repeated heat cycles weaken electronic components and eventually cause them to fail.

Age and component degradation are unavoidable factors. Capacitors lose their effectiveness over years of use. Solder joints develop micro-cracks from repeated thermal expansion and contraction. Microchips simply reach the end of their service life. Machines that are ten years or older are significantly more likely to experience board failure.

Manufacturing defects can also be responsible, particularly in machines where specific batches of boards were produced with substandard components. Some manufacturers have issued technical bulletins or extended warranties to address known board defects in certain models

How to Diagnose the Problem Correctly

Replacing a control board without confirming it is the actual fault is an expensive mistake. A structured diagnostic approach reduces the risk of misidentifying the problem.

Step 1. Confirm the power supply. Check that the outlet delivers stable power, the machine’s plug is secure, and no circuit breakers have tripped. Many symptoms that suggest a board failure are actually caused by power supply issues.

Step 2. Perform a reset. Unplug the machine from the wall and wait a minimum of five minutes. While unplugged, press and hold the start or pause button for approximately five seconds to discharge any residual electrical current. Plug the machine back in and run a short test cycle. Some control board malfunctions are caused by software glitches that a full power reset can resolve.

Step 3. Record and research error codes. Write down any error codes displayed and look them up in the owner’s manual or the manufacturer’s support documentation. Some codes directly indicate a board fault. Others point to sensors or peripheral components that should be tested before the board is condemned.

Step 4. Inspect the board visually. Unplug the machine before opening any panel. With the power disconnected, remove the appropriate panel to access the control board. Look for burn marks, swollen or leaking capacitors, corroded connectors, or any evidence of water damage. Visible physical damage is a reliable indicator of board failure.

Step 5. Test related components first. Because the board interacts with so many parts, a short circuit in an external component. such as a heating element, door lock assembly, or water level sensor. can damage the board or produce symptoms that mimic board failure. Testing these components with a multimeter before replacing the board is an important step.

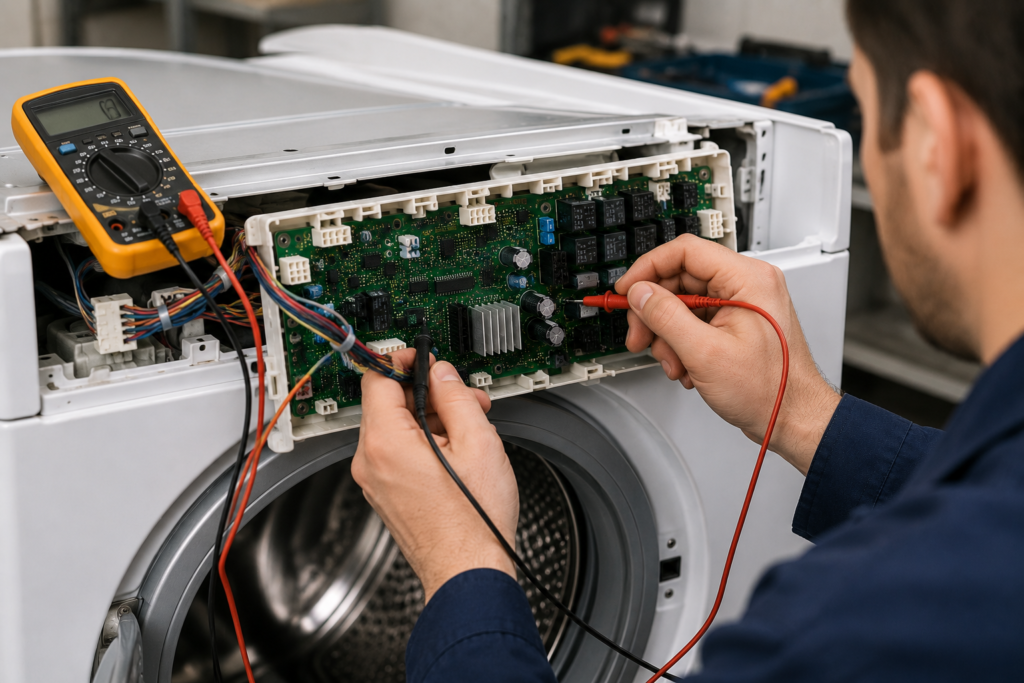

Step 6. Test the board itself. Using a multimeter, check whether voltage is arriving at the board from the power supply. If input voltage is present but the board is not sending signals out to the motor, display, or valves, the board has failed. A continuity test can also confirm whether internal circuits have broken down

Safety Note: Always unplug the washing machine completely before opening any panel or touching internal components. Allow at least five minutes for capacitors to discharge before handling the board.

Repair or Replace: Making the Right Decision

Once a control board failure is confirmed, three options are available. Some washing machine control board problems can be repaired, while others require complete board replacement.

Component-level repair involves replacing individual damaged parts on the board. such as a failed capacitor, a burnt resistor, or a faulty relay .rather than replacing the entire board. This approach is viable when the damage is localized and a technician with soldering experience is available. Specialist board repair services exist and can be considerably less expensive than purchasing a new board, but this option is not suitable for extensive or multi-point damage.

Full board replacement is the most common and reliable solution. Replacement boards are available directly from the manufacturer or through third-party appliance parts suppliers. Always match the replacement part to your machine’s exact model number. Prices typically range from approximately $100 to over $400 depending on the brand and model. Many top-load washers allow DIY board replacement with basic tools, while some front-load machines require more disassembly.

Machine replacement becomes the practical choice when the board replacement cost approaches or exceeds 50 percent of the machine’s current market value, when the machine is already ten or more years old, or when other major components are simultaneously approaching failure

Preventing Control Board Failures

A few straightforward habits can significantly extend the life of a washing machine’s control board.

• Install a surge protector rated for large appliances between the machine and the wall outlet to protect against voltage spikes.
• Ensure the laundry area is adequately ventilated to prevent heat buildup around the machine.
• Inspect door seals and hose connections periodically to catch water leaks before they reach the electronics.
• Avoid overloading the machine, which puts stress on the motor and indirectly increases heat and electrical load on the board.
• For machines approaching ten years of use, arrange a professional inspection proactively, before symptoms develop

Energy Saver appliance maintenance guide

How to Prevent Washing Machine Control Board Problems

Frequently Asked Questions

Can a washing machine work with a partially failed control board?

In some cases, yes. A machine with a partially failing board may still power on but fail to complete cycles correctly, respond inconsistently to inputs, or run with reduced functionality. However, partial failures typically worsen over time. Addressing the issue early prevents secondary damage to other components.

How long does a washing machine control board typically last?

Under normal operating conditions, a control board can last the full lifespan of the machine. often 10 to 15 years. However, exposure to power surges, moisture, or sustained heat can shorten this significantly. Machines in humid environments or areas with unstable power supplies tend to experience board failures earlier.

Is it worth repairing a washing machine control board?

It depends on the extent of the damage and the age of the machine. Minor component-level repairs on a relatively new machine are generally worth pursuing. Full board replacement on a machine that is less than eight years old and otherwise in good condition is also usually worthwhile. When the machine is older and other components are also showing wear, replacement of the machine is often the more cost-effective long-term decision.

Can a power surge permanently damage the control board?

Yes. A strong enough voltage surge can permanently destroy the microchips, capacitors, or relay circuits on the board. In some cases, the damage is visible as burn marks or scorched areas. In others, the board simply stops functioning without any visible external sign of damage.

Should I attempt to reset the board before calling a technician?

A reset is always a reasonable first step and costs nothing. Unplug the machine, wait five minutes, hold the start button for five seconds while unplugged, then restore power. If the machine functions normally after a reset, the issue was likely a temporary software glitch. If symptoms return or persist after resetting, a technician inspection is the appropriate next step

Final Thoughts

Washing machine control board problems are among the more complex appliance faults a homeowner can face, largely because one failing component can produce symptoms across multiple systems. The key is a methodical approach: confirm the power supply, attempt a reset, document error codes, inspect the board visually, and test related components before drawing conclusions.

Acting on board problems promptly matters. A failing board left unaddressed can cause secondary damage to motors, pumps, and sensors. transforming a manageable repair into a much more expensive one. Understanding washing machine control board problems helps homeowners make better repair decisions.

Whether you carry out the diagnosis yourself, consult a qualified appliance technician, or decide the machine has reached the end of its practical lifespan, the information in this guide gives you a reliable foundation to make the right decision with confidence. Most washing machine control board problems can be diagnosed successfully by following a structured troubleshooting process.
