Refrigerator Condenser Fan Not Working? 9 Proven Troubleshooting Steps

When your refrigerator condenser fan stops working, the compressor loses its primary cooling partner. and things go downhill fast. The most common cause is a worn-out fan motor, though dust buildup, physical obstructions, and wiring faults are close runners-up. Before anything else, unplug the fridge, pull it away from the wall, and inspect the fan area near the compressor. A refrigerator condenser fan not working problem should never be ignored because restricted airflow can quickly lead to compressor overheating and cooling failures.

Most people don’t think about the condenser fan until something goes wrong. It runs quietly in the background, tucked behind an access panel at the back or bottom of the refrigerator, spinning steadily whenever the compressor runs. You never notice it. until the fridge starts running warm, the compressor feels like a stovetop, or you catch a faint burning smell drifting from behind the unit. That’s usually when the investigation begin

What the Condenser Fan Actually Does

To understand why a failed condenser fan causes so much trouble, it helps to know what it’s doing during normal operation. The refrigeration cycle generates a significant amount of heat as the compressor pressurizes the refrigerant. That heat needs somewhere to go, and the condenser coils are where it gets released. The condenser fan pulls air across those coils and over the compressor housing, carrying that heat away from the system and out into the room.

Without that airflow, heat has nowhere to go. It builds up around the compressor, the coils run hotter than they should, and the entire cooling system has to work harder just to maintain temperature. Eventually, the compressor’s thermal overload kicks in and shuts things down to protect itself. which is why a refrigerator with a dead condenser fan often cycles on and off repeatedly or stops cooling altogether

Warning Signs Your Condenser Fan Has Stopped Working

The earliest warning sign is usually a refrigerator that feels like it’s working too hard. The compressor runs almost constantly, the sides and back of the unit feel unusually warm, and food in the refrigerator section starts losing its chill before the freezer shows any obvious trouble. That’s because the freezer compartment has its own insulation buffer, while the fridge side depends heavily on efficient heat exchange at the condenser.

Here are the key symptoms to watch for

• Refrigerator section warming up while the freezer still feels cold
• Compressor running constantly without the fridge reaching the right temperature
• Compressor feels extremely hot to the touch at the back of the unit
• Buzzing or humming sound coming from behind the fridge that wasn’t there before
• Refrigerator cycling on and off more frequently than normal
• Faint burning smell from behind or beneath the unit in more advanced cases

A hot compressor is a serious red flag that shouldn’t be ignored. If the compressor feels genuinely hot. not just warm. that’s a strong indicator the condenser fan has stopped doing its job. The buzzing or humming sound often means the motor is trying to start but failing to maintain rotation, which puts significant strain on the compressor over time

Common Refrigerator Condenser Fan Not Working Symptoms

Many refrigerator condenser fan not working cases begin with subtle warning signs such as excessive compressor heat, poor cooling performance, and longer run times.

The Most Common Causes of Condenser Fan Failure

Dust and Debris Buildup

This is probably the single most overlooked cause of condenser fan problems. Over months and years, pet hair, lint, and household dust accumulate around the fan blades and motor housing. In mild cases, this just reduces airflow efficiency. In worse cases, the buildup becomes so thick that the blades physically can’t complete a full rotation, putting constant strain on the motor until it eventually burns out. If you’ve never cleaned the condenser area on a refrigerator that’s been running for several years, there’s a real chance this is contributing to the problem. even if it isn’t the only cause.

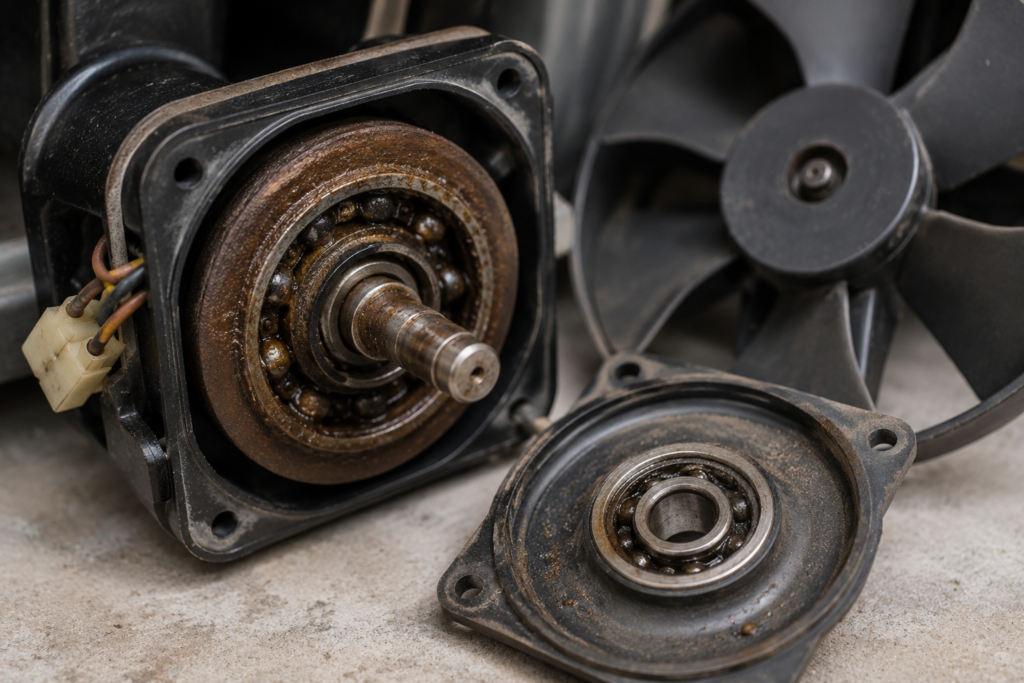

Worn Motor Bearing

This is the next most common cause, especially in refrigerators that are five or more years old. The condenser fan motor runs continuously during every compressor cycle, logging thousands of hours of operation over its lifetime. The internal bearings gradually wear down, making the motor increasingly stiff until it seizes completely. You can usually detect this by spinning the fan blade by hand after unplugging the fridge. If it feels gritty, stiff, or won’t complete a full rotation freely, the motor is failing or already gone.

Wiring and Connection Problems

Less common but worth investigating. particularly in older refrigerators or units that have experienced moisture intrusion. A loose connector at the motor, a frayed wire along the harness, or a corroded terminal can interrupt power to the fan even when the motor itself is still functional. This type of fault can be intermittent and frustrating to pin down, because the fan may work fine sometimes and then stop without warning.

Control Board Faults

Modern refrigerators use electronic boards to manage fan operation. When a relay or circuit on that board fails, the fan simply doesn’t receive the signal to run. even though power may be present at the board itself. This is typically a diagnosis of elimination, meaning you’d rule out the motor, wiring, and obstructions before pointing the finger at the control board. In older refrigerators, worn bearings are one of the most common reasons for a refrigerator condenser fan not working condition.

How to Troubleshoot a Refrigerator Condenser Fan Not Working

Step 1. Start With a Visual Inspection

Unplug the refrigerator, pull it away from the wall, and remove the rear access panel to expose the condenser fan and compressor area. Before testing anything, just look. Check for:

• Visible dust and debris packed around the fan blades or motor housing
• Any wires that appear damaged, disconnected, or burnt
• Physical obstructions. packaging material, a dislodged component, or anything blocking the blade from spinning

Step 2. Spin the Fan Blade by Hand

This single check tells you a lot. With the fridge unplugged, try rotating the fan blade manually with your finger. It should spin smoothly with almost no resistance. If it turns freely, the motor may still be good and the problem could be a power supply issue. If it feels stiff, grinds, or won’t complete a full rotation, the motor bearings are compromised and replacement is needed.

Step 3. Clean the Condenser Area

Cleaning is always worth doing regardless of what else you find. Use a vacuum with a narrow attachment to pull dust off the coils, fan housing, and the surrounding compressor area. A soft brush works well for loosening stubborn buildup on the coil fins. Sometimes a fan that was slowing down due to debris drag will run normally again once that load is removed. it doesn’t always fix the underlying motor issue, but it’s a necessary step either way.

Step 4. Check for Power at the Motor

If the blade spins freely and the area is clean, the next step is confirming the motor is actually receiving power. With the refrigerator plugged in and the compressor running, carefully measure the voltage at the fan motor connector using a multimeter. Most residential condenser fan motors operate on 120V AC, though some newer models use low-voltage DC. check your unit’s service label for the correct specification.

• Correct voltage present but fan not running → the motor is defective and needs replacement
• No voltage reaching the connector → the problem is upstream, either a wiring fault or a control board issue

Step 5. Test the Motor for Continuity

With the motor disconnected, set your multimeter to resistance mode and probe the motor terminals. A reading of infinite resistance means the internal winding has opened. that motor is done and needs to be replaced regardless of what the power supply shows

Replacing the Condenser Fan Motor

Condenser fan motor replacement is one of the more approachable DIY refrigerator repairs, and most homeowners with basic tools can handle it confidently. The motor is typically secured by two or three mounting screws, and the fan blade usually pulls straight off the shaft once a retaining clip or nut is removed. Before disconnecting anything, take a quick photo of the wiring connections. It takes five seconds and eliminates all guesswork during reassembly.

When ordering a replacement motor, always use your refrigerator’s full model number rather than just the brand name. Motors are often model-specific in terms of shaft diameter, mounting configuration, and voltage rating. Installing the wrong motor .even one that looks nearly identical. can cause incorrect airflow, premature failure, or damage to the control board.

Once the new motor is in place, reattach the fan blade, reconnect the wiring, replace the access panel, and plug the refrigerator back in. The fan should start within a minute or two as the compressor cycles on. Give the unit several hours to stabilize before judging whether temperatures have returned to normal

When to Stop and Call a Technician

If you’ve replaced the fan motor and the refrigerator still isn’t cooling, or the new motor isn’t running despite confirmed voltage at the connector, the problem has moved beyond a straightforward component swap. Control board diagnosis requires familiarity with refrigerator service schematics and electrical testing, and misdiagnosing the board is an expensive mistake. replacement boards can run anywhere from $100 to $300 or more depending on the brand and model.

You should also call a professional if the compressor has been running hot for an extended period without the fan operating. Prolonged overheating can damage internal compressor components in ways that aren’t immediately obvious, and a technician can assess whether that damage has occurred before you invest further in parts

How to Prevent Condenser Fan Problems

The most effective preventive measure is also the simplest: clean the condenser coils and fan area every six to twelve months. In homes with pets, do it every three to four months. animal hair accelerates buildup dramatically and is one of the leading contributors to premature fan motor failure.

Most manufacturers also recommend leaving adequate clearance behind and beneath the refrigerator for proper airflow. Pushing the unit flush against a wall or enclosing it too tightly in cabinetry forces the system to work harder and puts extra stress on both the fan and compressor over time.

It’s also worth listening to your refrigerator occasionally. A condenser fan that’s beginning to wear will often give subtle audio warnings. a faint rattling, an intermittent grinding, or a slightly different tone in the normal running sound. weeks or even months before it fails completely. Catching those sounds early and investigating can mean the difference between a simple motor swap and a compressor repair

A failed refrigerator condenser fan is one of those problems that feels minor until it becomes costly. Caught early, it’s a manageable repair that most homeowners can handle themselves. Left too long, it puts the compressor under sustained stress that can turn a modest fix into a serious one. If your fridge is running warm and the back of the unit feels hotter than usual, don’t wait. check the condenser fan first. It’s almost always the place to start. Routine cleaning and inspection can significantly reduce the chances of facing a refrigerator condenser fan not working problem in the future.
