Washing Machine Relay Clicking But Not Starting? 7 Causes and Easy Fixes

A washing machine relay clicking but not starting usually means the control board is receiving power but another component is preventing the machine from running. When your washing machine clicks but refuses to start, the relay on the control board is attempting to engage. but something downstream is blocking the machine from actually running. The most common culprits are a failed door latch, a tripped motor thermal protector, or a worn relay contact that can no longer close the circuit cleanly. Before you call a technician, start with the door lock and a basic power reset. those two checks alone resolve this problem more often than most people expect

That clicking sound is actually useful diagnostic information. A completely dead machine. no lights, no sounds, no response at all. is a different problem entirely. But a machine that clicks when you press Start is telling you something specific: the control board is alive, it’s receiving your input, and it’s sending signals. The system is genuinely trying. The breakdown is happening somewhere between that signal leaving the board and the motor actually spinning. Understanding that distinction is what makes a washing machine relay clicking but not starting so diagnosable when you approach it the right way

Why Is My Washing Machine Relay Clicking But Not Starting?

If your washing machine relay clicking but not starting problem appeared suddenly, the cause is often related to the door lock, capacitor, motor, relay, or control board.

What That Click Actually Means

A relay is an electrically operated switch. The control board sends a small voltage signal to the relay’s coil, which generates a magnetic field strong enough to physically pull a set of internal contacts together. When those contacts close, a much larger current. enough to run a motor, pump, or heating element. is allowed to flow. The click you hear is that physical contact snapping shut. It’s mechanical. It’s real. And it confirms that the coil side of the relay is working.

The problem, in many cases, is the contact side. After years of switching on and off under load, relay contacts develop pitting, carbon buildup, or corrosion that prevents a clean electrical connection. The relay still clicks. the coil is fine. but the contacts are no longer conducting current reliably. Think of it like a light switch you can flip, but the light flickers or stays off because the internal mechanism has worn out. Same motion, no result.

That said, the relay itself is not always the culprit. Clicking can also happen when the relay is working perfectly but the machine has detected a safety condition that prevents the cycle from proceeding. This is where the diagnosis gets more involved. and where a lot of homeowners start chasing the wrong component

Start Here: The Door Latch Is the Most Common Cause

In both front-load and top-load washers, the machine will not proceed past the relay stage if it cannot confirm the door or lid is securely closed. This is a hard safety interlock. not a soft warning. If the door latch switch is faulty, misaligned, or physically broken, the control board receives no confirmation signal and aborts the cycle immediately, even though the relay has already clicked. In many cases, a washing machine relay clicking but not starting issue is caused by a faulty door latch assembly.

What makes this tricky is that the door can look and feel completely closed while the switch inside the assembly has already failed. The latch clicks, the door feels secure, but the electrical contact inside is no longer working. You press Start, the relay clicks, nothing happens. From the outside it looks like a motor or board problem. It’s often a two-dollar switch.

To confirm a faulty door latch:

• Unplug the machine completely before inspecting anything
• Locate the door latch assembly. on front-loaders it’s in the door frame; on top-loaders it’s typically under the lid near the hinge

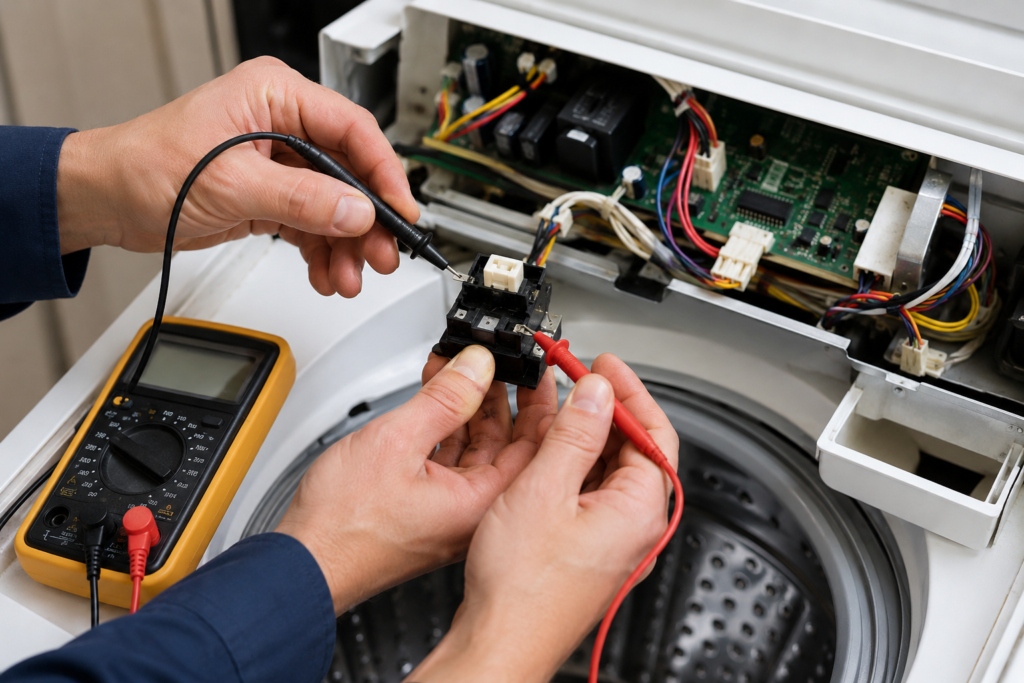

• Disconnect the switch and test it with a multimeter set to continuity mode
• Manually depress the switch plunger. you should see a continuity reading
• No continuity when pressed means the switch has failed and needs replacement

Door latch assemblies are widely available for most brands and are generally one of the more straightforward DIY repairs on a washing machine.

Motor Problems That Mimic a Control Board Fault

If the door latch checks out, shift your attention to the motor. Washing machine motors have a built-in thermal overload protector. a bimetallic safety device that trips and electrically disconnects the motor if it overheats. Once it trips, the relay can click all it wants, but no current reaches the motor and nothing spins.

This situation most commonly occurs after a heavy, back-to-back cycle. thick towels, jeans, or a large load. The motor gets hot, the protector trips, and then the user immediately tries to start another cycle. The relay clicks, the machine does nothing, and the assumption is that something has broken. In reality, the motor just needs 30 to 45 minutes to cool before the protector automatically resets. If the thermal protector is tripping repeatedly under normal loads, that’s a different concern. It typically means:

• The motor bearings are wearing out, forcing the motor to work harder than it should
• The drain pump is partially blocked, adding extra strain to the system
• The motor windings are beginning to fail internally

Repeated thermal trips on ordinary cycles are a warning sign worth taking seriously .they often come before a complete motor failure.

One more motor check worth doing: unplug the machine and try to rotate the drum by hand. It should move with moderate resistance. If it’s locked completely or requires unusual force, you may have an obstruction inside the drum, a broken drive belt wrapped around a pulley, or a seized bearing. Any of these can cause the control board to detect resistance and cut the cycle before it begins .which shows up as exactly the clicking-with-no-start pattern you’re dealing with

Capacitor Failure: The Overlooked Electrical Culprit

Many washing machine motors. particularly single-phase induction motors. rely on a start capacitor to generate the torque needed to begin spinning. Without it, the motor receives power but physically cannot overcome its own inertia. You might hear a hum, a brief stutter, or nothing beyond the relay click. This is another common reason for a washing machine relay clicking but not starting symptom.

Capacitors fail with age. They can swell visibly at the top, leak electrolyte, or fail internally without any outward sign. If you have a capacitor meter, a failed unit will read significantly below its rated microfarad value. Replacement capacitors are inexpensive, and swapping one out is manageable for most DIYers. but always discharge the old capacitor before touching it. Even with the machine unplugged, a capacitor can hold a charge capable of delivering a serious shock.

What to Look for on the Control Board

A washing machine relay clicking but not starting problem can sometimes be traced directly to a faulty control board. The main control board deserves a look if everything else has checked out. A single failed transistor or a cracked solder joint in the motor control circuit can produce exactly this symptom part of the board is working well enough to fire the relay, but the motor activation signal never completes. When inspecting the board, look specifically for:

• Burn marks or darkened areas on the board surface
• Any component showing signs of heat damage or melting
• Swollen or leaking capacitors on the board itself
• Corroded connector pins where the wiring harness plugs in

Board-level component repairs require electronics experience. In most practical situations, replacing the board is more sensible than attempting component-level soldering unless you have specific skills in that area. That said, control boards are on the more expensive end of washing machine repairs, so it’s worth eliminating the simpler causes first before committing to one.

Don’t Overlook Your Power Supply

One cause that gets misdiagnosed constantly is an inadequate or unstable power supply. A washing machine’s control board runs on relatively low voltage. enough to light the display, accept your inputs, and fire relay coils. But the motor needs a full, stable supply to actually run. It’s entirely possible for a machine to appear operational. responsive buttons, lit display, clicking relays. while the outlet or circuit is not delivering enough current to start the motor. Quick power supply checks to run before opening the machine:

• Reset the breaker properly. don’t just check if it looks like it’s on. Flip it fully off, then back on. A partially tripped breaker can supply reduced voltage without appearing tripped.
• Check the outlet voltage. a washing machine typically needs 120V in North America. Use a voltmeter if you have one.
• Remove any extension cord. washing machines should always plug directly into a dedicated wall outlet. Even a heavy-duty extension cord introduces enough resistance to prevent motor startup under load.
• Inspect the outlet itself. a loose internal connection can cause intermittent voltage delivery that’s easy to miss.

These take two minutes to check and occasionally save you from a completely unnecessary appliance repair. A washing machine relay clicking but not starting problem can be frustrating because the washer appears to respond normally while refusing to begin the cycle. Fortunately, a systematic diagnosis often reveals the root cause.

A Logical Troubleshooting Sequence

If you’re working through this systematically, here’s the order that makes the most practical sense. moving from the simplest and cheapest possibilities toward the more involved ones:

1. Check the door latch first. test with a multimeter, replace if the switch isn’t showing continuity when depressed
2. Let the machine cool. if it’s been recently used, wait 45 minutes before trying again
3. Verify your power supply. reset the breaker, remove extension cords, check outlet voltage
4. Check the pump filter. a seized or clogged drain pump can trigger relay cycling without allowing the cycle to begin; the filter is usually behind a small access panel at the front base
5. Test the start capacitor. use a capacitor meter; replace if it reads below rated value
6. Inspect the control board. look for burn marks, heat damage, and corroded connectors
7. Test the relay contacts directly. with the board exposed and machine unplugged, check continuity across the relay’s output terminals

Most cases resolve somewhere in the first half of that list. Door latches, thermal protectors, and clogged pumps account for the large majority of washing machine relay clicking situations. The relay and control board do fail, but they tend to be the answer after simpler possibilities have already been ruled out.

When It’s Time to Call a Technician

If you’ve worked through the sequence above and the machine still won’t cooperate, bringing in a qualified appliance technician is a reasonable next step. especially if the control board or motor is involved. At that point, repair costs can climb quickly, and it’s worth comparing the estimate against the machine’s age and replacement value. A general rule of thumb: if repair costs approach 50% or more of what a comparable new machine would cost, replacement often makes more financial sense.

That said, for a washing machine that’s been reliable and is showing this specific symptom. clicking relay, no start, otherwise responsive. a systematic diagnosis almost always finds something fixable before you reach that decision

A clicking relay on a washing machine is frustrating precisely because the machine seems like it should be working. But that click is genuinely helpful. it tells you the control board hasn’t given up, and neither should you. Work through the likely causes in order, stay safe when working near electrical components, and you’ll have a clear answer one way or another without guessing
